Specification
- Voltage: DC12V/ DC24V
- Program: 17 modes
- Function: On /off , Mode(select / lock up the color) ,Speed up / down, Brightness up /down
- Output: 3 Channel
- Related Current: 6A each channel
- Output Power: 12V < 220W, 24V < 450W
- Size: L211*W40*H30mm
- Pakage Size: L215×W43×H33mm
- N / W: 180g
- G / W: 210g
Note: If used together with amplifier, each can control twice the quantity of LED lights by every adding one more,
which can achieve the unlimited output power repeating.

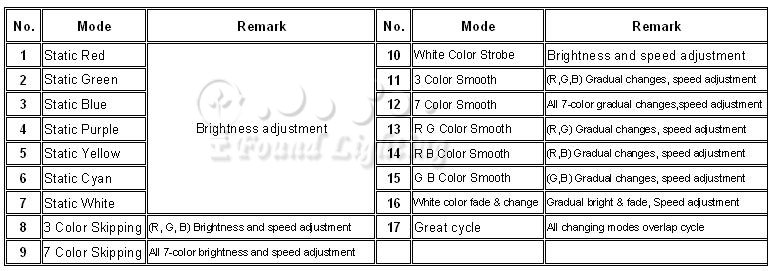

Changing Modes

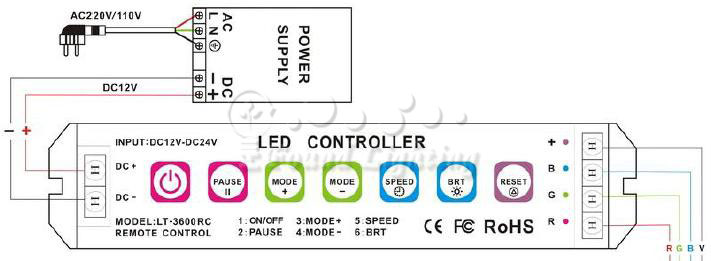

How to use
