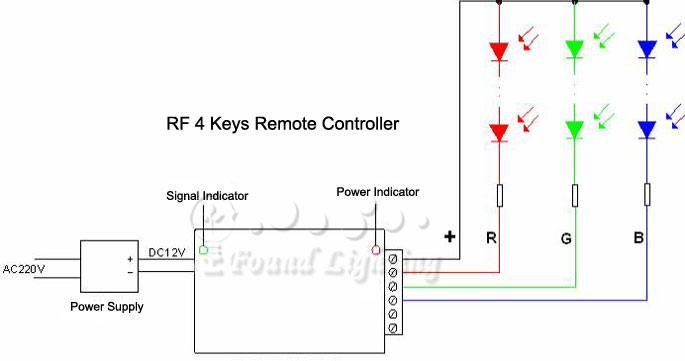

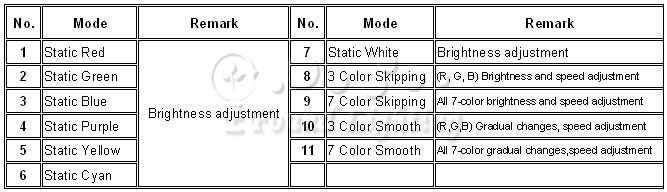

Specification - Voltage: DC12V/ DC24V - Program: 11 modes - Function: On /off , Mode(select / lock up the color) ,Speed up / down, Brightness up /down - Output: 3 Channel - Related Current: < 4A each channel - Output Power: 12V < 220W, 24V < 450W - Size: L128ΧW64ΧH24mm - Pakage Size: L145ΧW95ΧH50mm - N / W: 185g - G / W: 215g Note: If used together with amplifier, each can control twice the quantity of LED lights by every adding one more, which can achieve the unlimited output power repeating. Changing Modes ![](UpLoadFile/2009112101575873499.jpg) How to use - Method 1 ![](UpLoadFile/2009112101582173499.jpg)

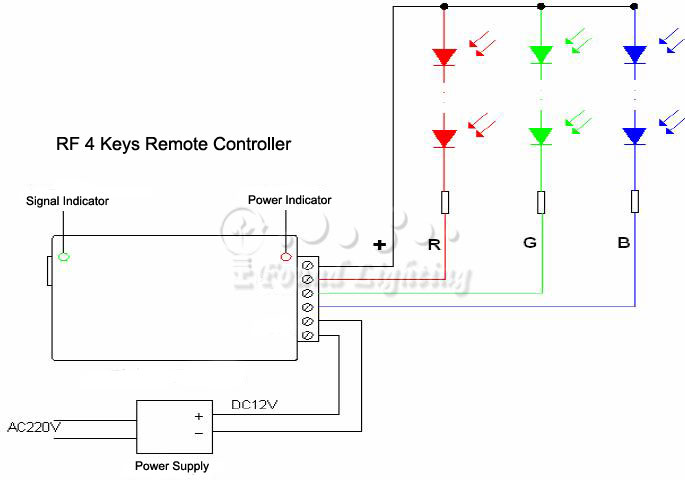

- Method 2 ![](UpLoadFile/2009112101584673499.jpg)
|
