Multi-functional LED dim controller is dedicated to control single color led changes, LED lighting's brightness and synchronic color changing effect.
Note: If used together with amplifier, each can control twice the quantity of LED lights by every adding one more,
which can achieve the unlimited output power repeating.
Specification
- Voltage: DC12V/ DC24V
- Function Keys: 7 keys( On /off , Mode, Brightness/ Speed up, Brightness/ Speed down, 3 DIYkeys)
- Changeable Mode: 8 modes
- Changeable Speed: 8 levels
- Changeable Brightness: 64 levels
- Color depth：256 levels
- Output: 3 Channel
- Related Current: < 6A each channel
- Output Power: 12V < 220W, 24V < 450W
- Size: L211×W40×H30mm
- Pakage Size: L215×W43×H33mm
- N / W: 160g
- G / W: 180g

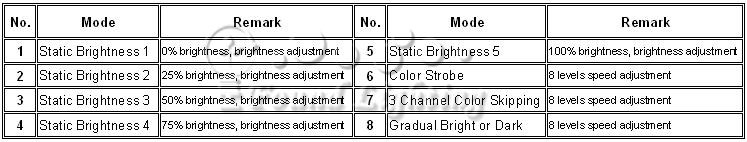

Changing Modes

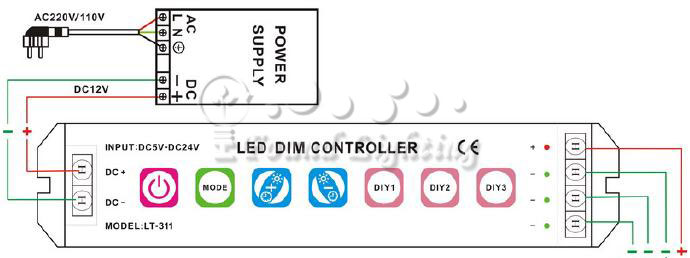

How to use
