| Model:IF-AMPH-12 |
| Materials:DC12V/ DC24V |
| Size:L114*W65*H25mm |
| Category:RGB Amplifier |
|
Introduction LED Amplifer (LED Power Repeater) is suitable for power-output style controllers' power expansion, it accepts PWM control, the control quantity will be twice as much by every adding one more power repeater, unlimited quantity of amplifier to be connected theoretically. Note: If LED controller or LED dimmer is used together with LED amplifier, each can control twice the quantity of LED lights by every adding one more, which can achieve the unlimited output power repeating. Specification - Voltage: DC12V/ DC24V - Output: 3 Channels - Related Current: < 4A each channel - Output Power: 12V < 144W, 24V < 288W - Size: L114*W65*H25mm - Pakage Size: L122*W85*H42mm - N / W: 110g - G / W: 135g Features - 3 Channels RGB output, 6A/CH, total 18A.
- Accept PWM control.
- Unlimited connection quantity theoretically, unlimited power output expansion.

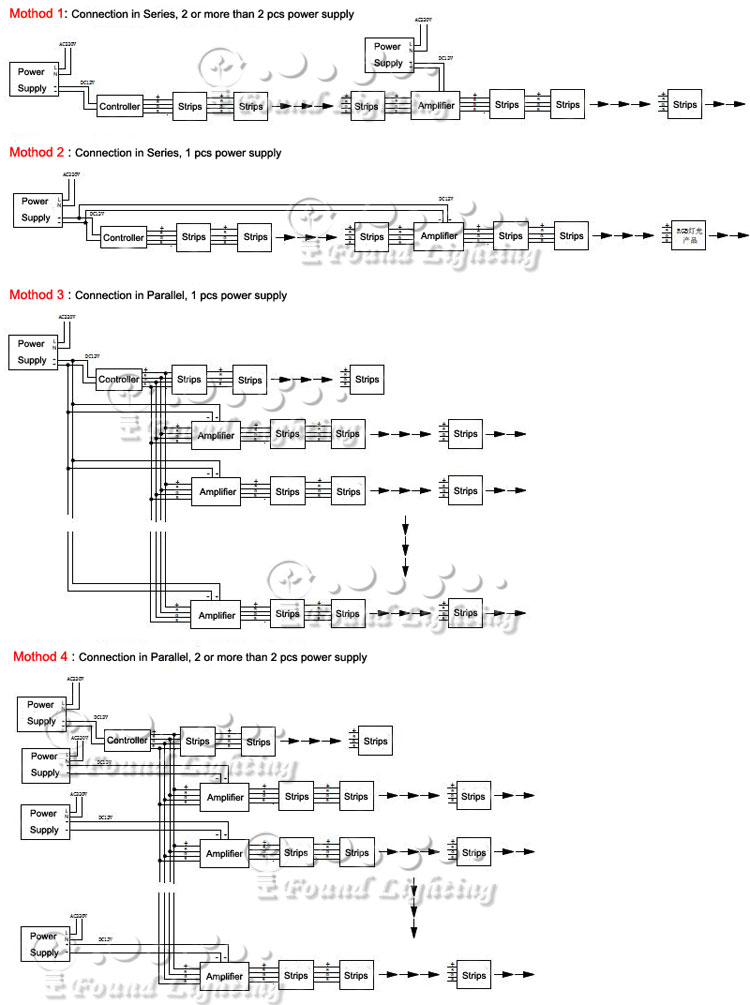

- Unlimited distance between controller to repeater, repeater to repeater theoretically. How to use
|
|
|
|
|
|
|
